For the identifier element to be detected consistently on all the documents, adjust its properties:
  1. Open the element’s Properties dialog box.
  2. Click the Static Text tab.

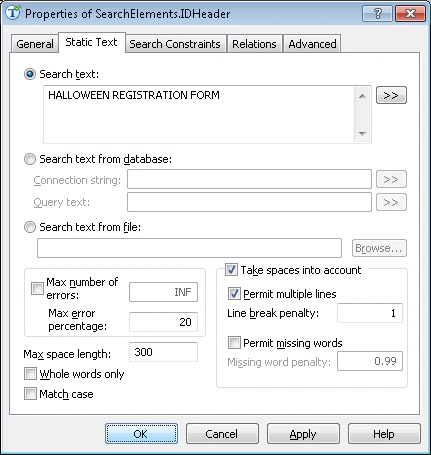

Screenshot of the Static Text tab of the IDHeader element properties in ABBYY FlexiLayout Studio showing the Take spaces into account and Permit multiple lines options and the Line break penalty set to 1.
  1. In the Search text field, type the text to find, preserving the spaces: HALLOWEEN REGISTRATION FORM. This means that the program will look for a phrase that may span more than one line.
  2. Select Take spaces into account and Permit multiple lines to specify that the search phrase may be written on more than one line.
  3. Set the Line break penalty to 1. This will preserve the quality of the hypothesis when the phrase wraps to the next line. If you set a smaller value, the hypothesis will be penalized.
Now if you try matching the FlexiLayout and the images, the program will detect the identifier element on all the test images.
