The FlexiLayout saved in *.afl format can be opened in ABBYY FlexiCapture:
  1. Launch ABBYY FlexiCapture.
  2. Create a new project or open an existing project.
  3. Create a new Document Definition or open an existing Document Definition in the Document Definition Editor.

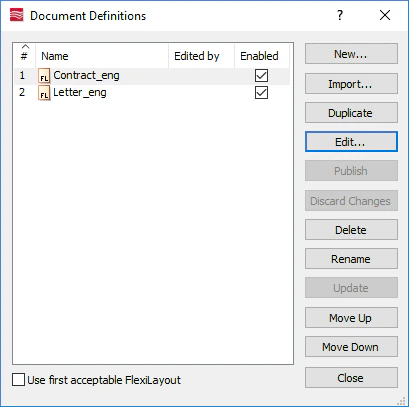

    To open an existing Document Definition, go to Project → Document Definitions…, select the required Document Definition from the list of available Document Definitions and click Edit…
Screenshot of the Project menu in ABBYY FlexiCapture with the Document Definitions command selected to open an existing Document Definition for editing.
  1. In the Document Definition Editor, open the Section Properties dialog box (View → Properties…).
  2. Click the FlexiLayout tab.
  3. Click the Load… button.

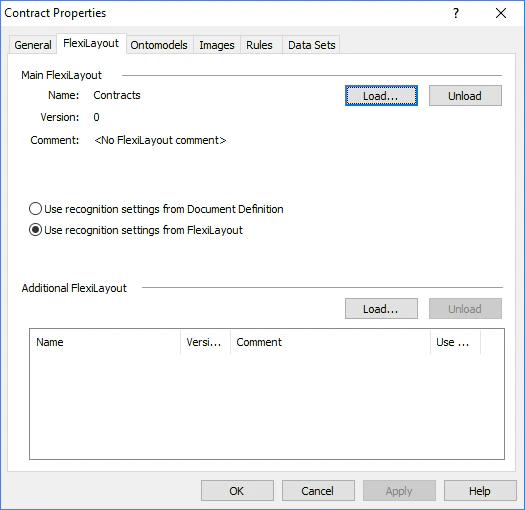

Screenshot of the FlexiLayout tab of the Section Properties dialog box in the ABBYY FlexiCapture Document Definition Editor showing the Load button used to load an AFL file.
  1. In the Open dialog box, select the required *.afl file.
The required Document Definition blocks will be created automatically based on the FlexiLayout. To view the blocks, select the Match Section command in the Tools menu.
