To configure a scenario in WinActor:

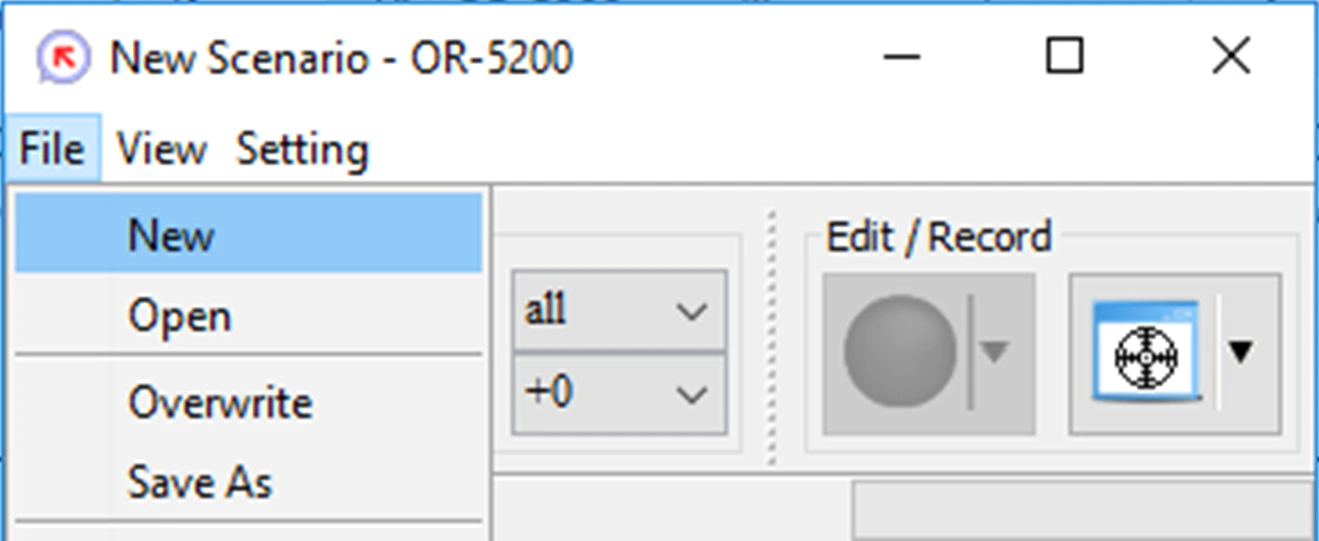

  1. Click File → New.

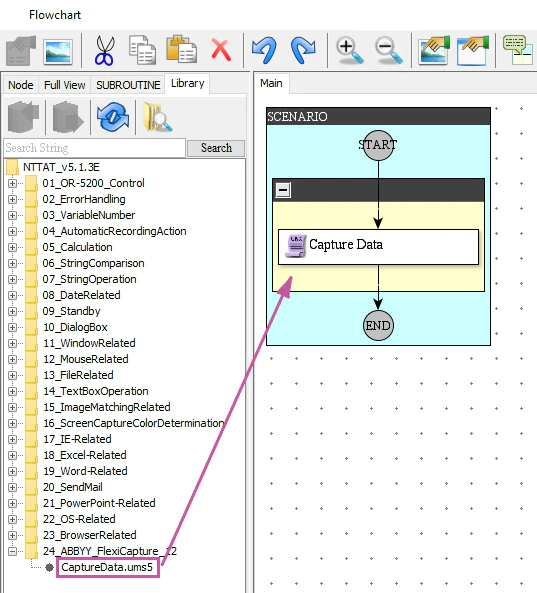

  1. In the Flowchart window, click the Library tab and and drag and drop the CaptureData.ums5 scenario onto the workspace.

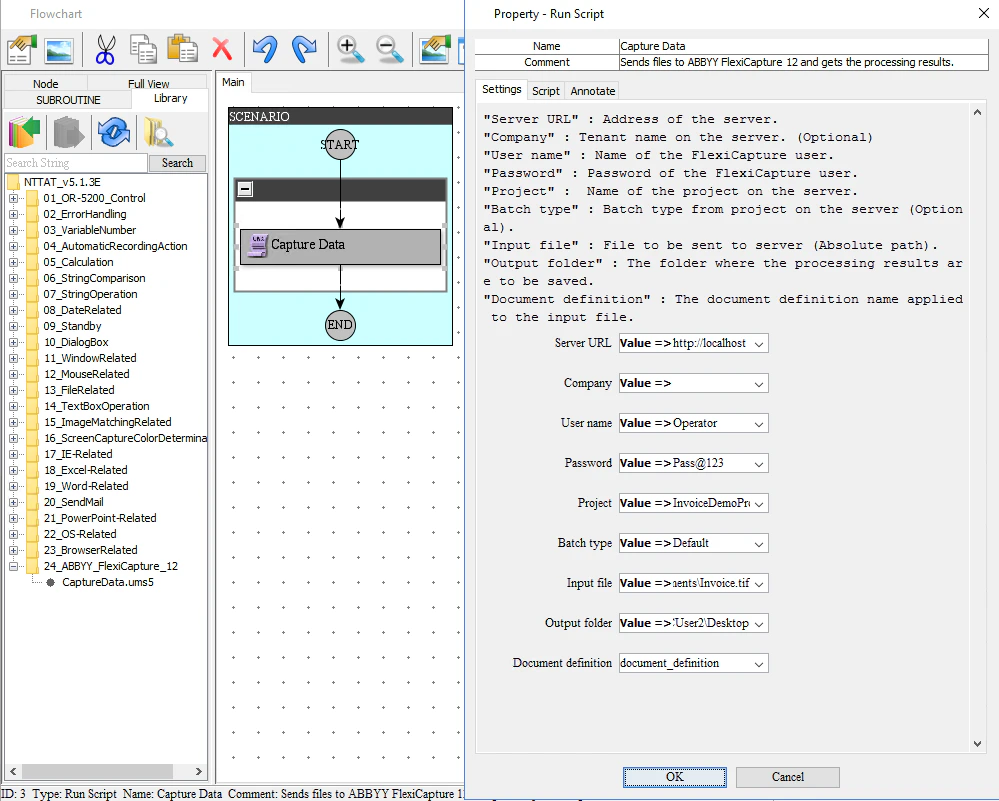

  1. Double-click Capture Data on the flowchart to open the Property - Run Script window. In the Property - Run Script window, click the Settings tab and specify the settings to be used to connect to the FC server, the path to an input document image, the path to an output folder where extracted data should be stored, and a variable that will store the name of the matching document definition.
There are two ways to specify the above parameters. You can either specify them directly, using the Value=>MyValue syntax, or you can create the necessary variables in the Variable List window and then specify their names in the Property - Run Script window.
Before you can run this scenario, you must upload a configured ABBYY FlexiCapture project on to the Application Server.

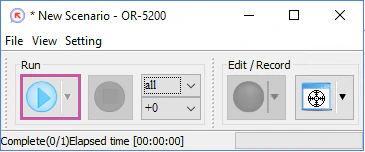

  1. To run the configured scenario, click Run.
