To create a file collection section, do the following:
  1. In Dev Studio, click Records → Process → Flow Action → Collect and then click the configuration button.

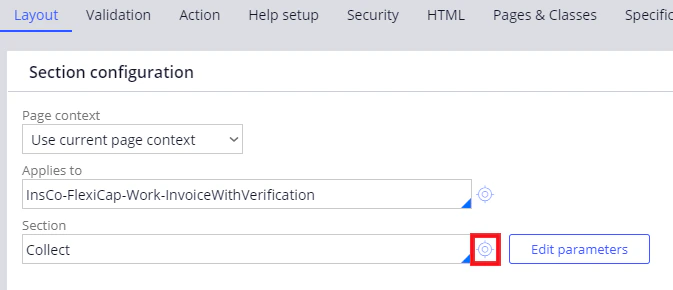

    Screenshot of Pega Dev Studio editing the Collect flow action on the Layout tab, with the section configuration button next to the Collect section highlighted.
  2. On the Design tab, delete the default dynamic layout, add Layout → AJAX Container, and specify the following settings in the dialog box that opens:
    • Default view – Section
    • Page context – Use other context
    • Section – pyCaseAttachments
    • Context – Work-

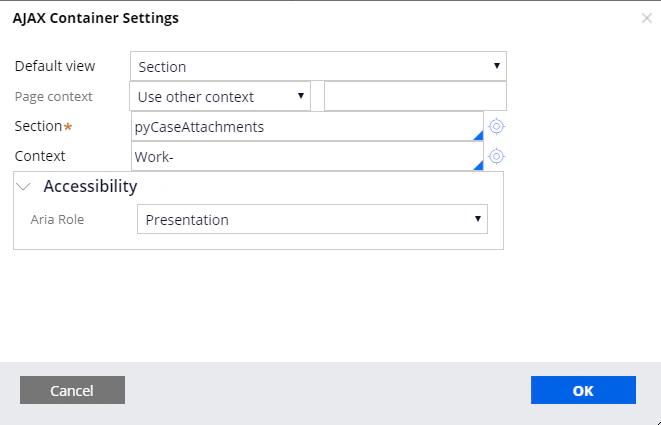

    Screenshot of the Pega AJAX Container Settings dialog with Section selected as the Default view, pyCaseAttachments entered as the Section, and Work- entered as the Context.
  3. Click OK. The Design tab should now look as follows:

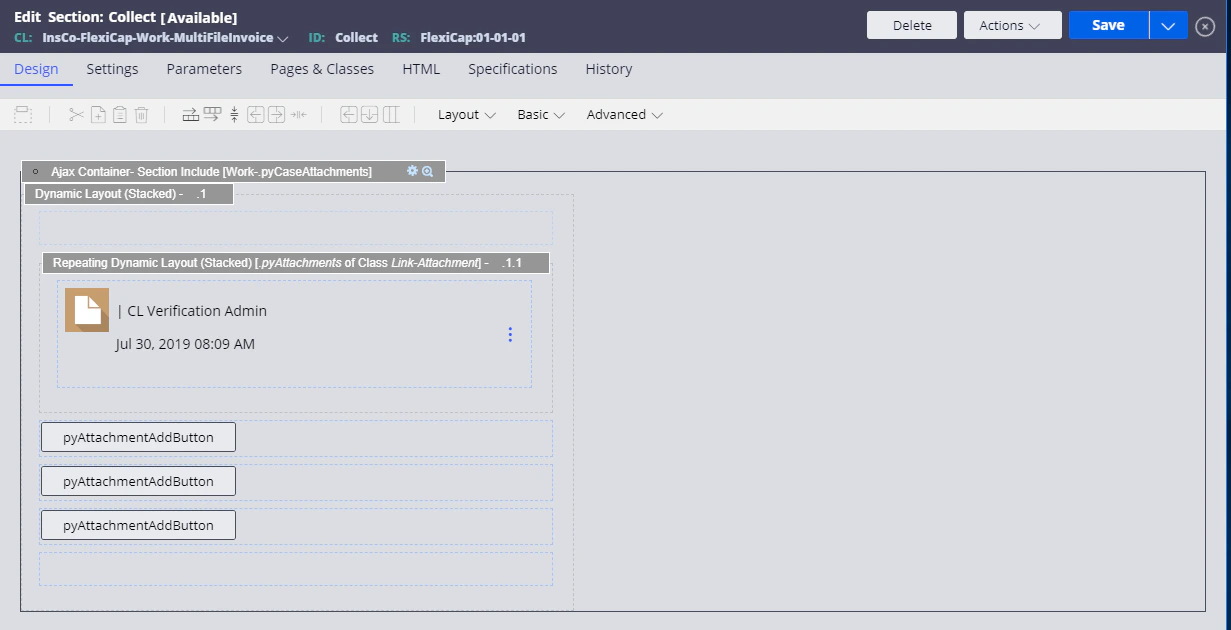

Screenshot of Pega Dev Studio showing the Collect section Design tab with an AJAX Container that includes the pyCaseAttachments section and pyAttachmentAddButton controls.
