Creating a set of transforms for a multi-document processing case - ABBYY Documentation

jsonToInvoice

For more information about creating data transforms, see Creating a set of data transforms in Pega.

Action	Clipboard	Relation	JSON
Set	.InvoiceNumber	equal to	InvoiceNumber
Set	.InvoiceDate	equal to	InvoiceDate
Set	.Total	equal to	Total
Set	.DeliveryAddress	equal to	DeliveryAddress
Set	.InvoiceCompany	equal to	InvoiceCompany
Auto-map	.InvoiceTable	To	InvoiceTable

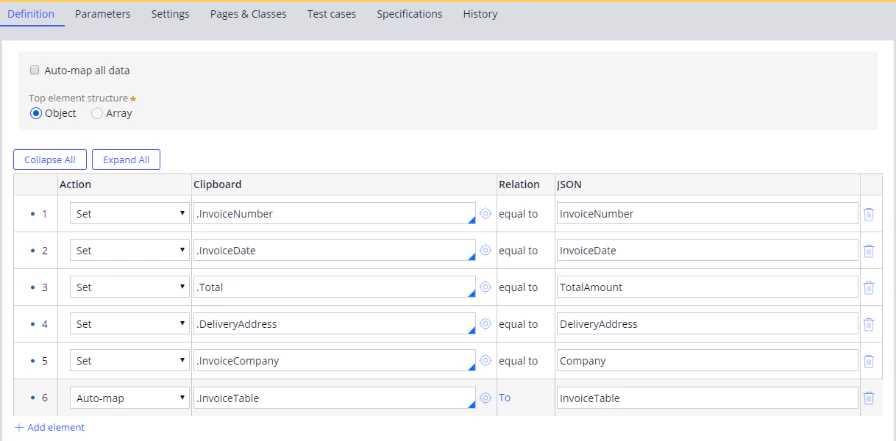

Screenshot of the jsonToInvoice data transform Definition tab in Pega Dev Studio mapping the .InvoiceNumber, .InvoiceDate, .Total, .DeliveryAddress, and .InvoiceCompany clipboard properties to JSON and auto-mapping .InvoiceTable.

jsonToBanking

Action	Clipboard	Relation	JSON
Set	.SSN	equal to	SSN
Set	.LastName	equal to	LastName
Set	.FirstName	equal to	FirstName
Set	.Initial	equal to	Initial
Set	.City	equal to	City
Set	.BirthDate	equal to	BirthDate
Set	.HomePhone	equal to	HomePhone
Set	.WorkPhone	equal to	WorkPhone
Set	.EmployerName	equal to	EmployerName
Auto-map	.Address	To	Address

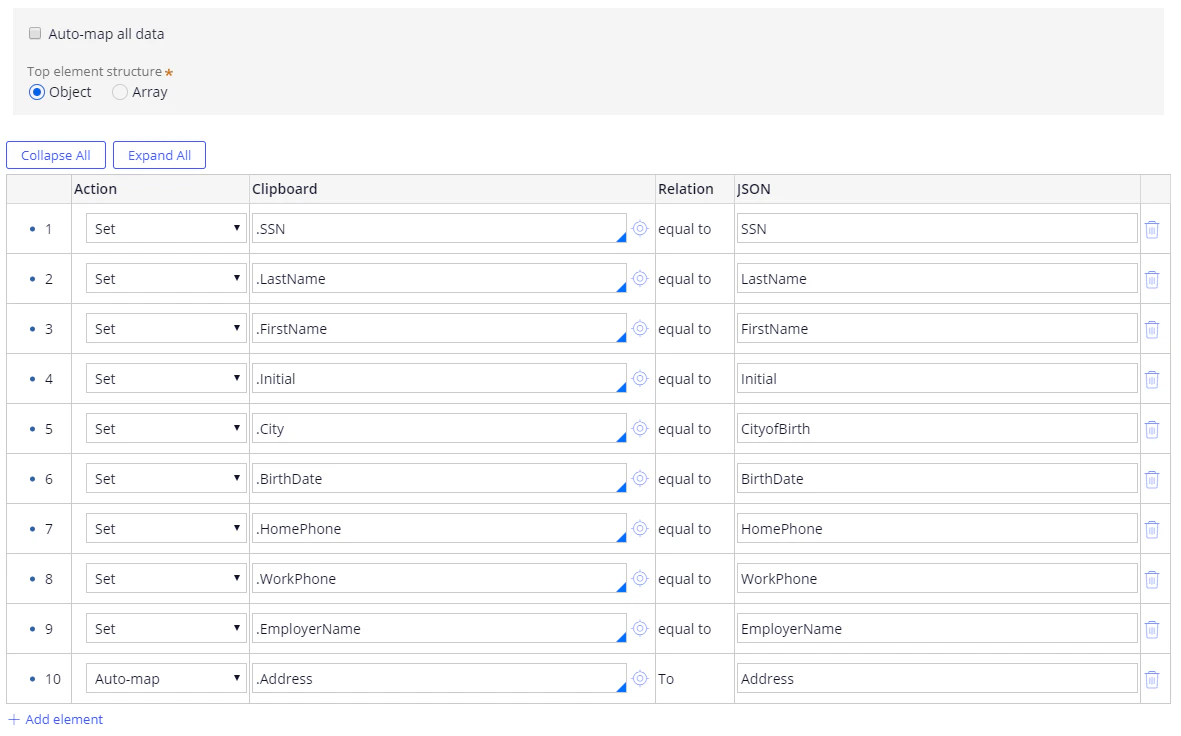

Screenshot of the jsonToBanking data transform Definition tab in Pega Dev Studio mapping the .SSN, .LastName, .FirstName, .Initial, .City, .BirthDate, .HomePhone, .WorkPhone, and .EmployerName clipboard properties to JSON and auto-mapping .Address.

jsonToContract

Action	Clipboard	Relation	JSON
Set	.ContractNumber	equal to	ContractNumber
Set	.ContractDate	equal to	ContractDate

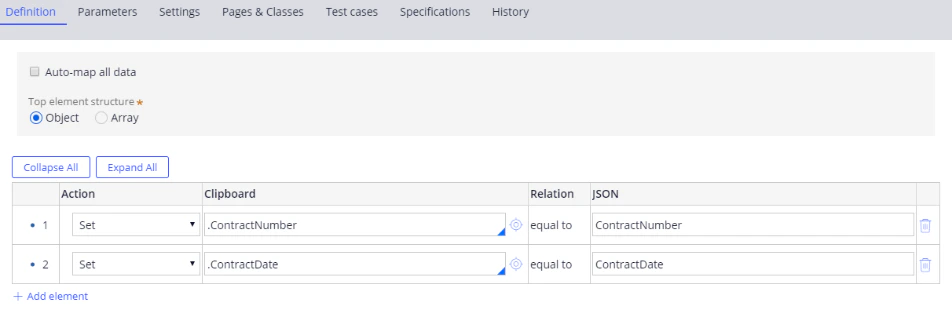

Screenshot of the jsonToContract data transform Definition tab in Pega Dev Studio mapping the .ContractNumber and .ContractDate clipboard properties to the matching JSON properties.

jsonToLetter

Action	Clipboard	Relation	JSON
Set	.LetterDate	equal to	LetterDate
Set	.LetterFrom	equal to	LetterFrom
Set	.LetterTo	equal to	LetterTo

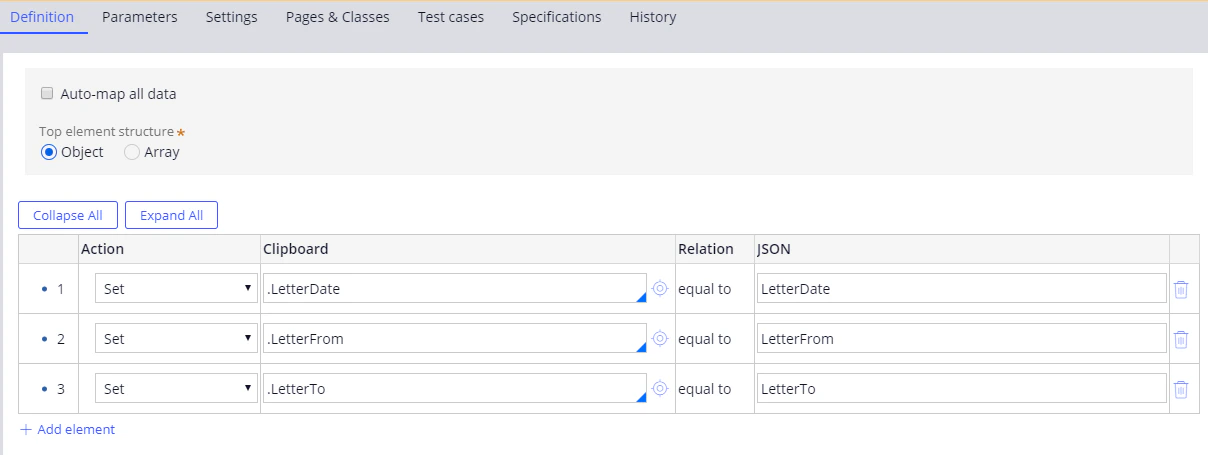

Screenshot of the jsonToLetter data transform Definition tab in Pega Dev Studio mapping the .LetterDate, .LetterFrom, and .LetterTo clipboard properties to the matching JSON properties.

jsonToPrice

Action	Clipboard	Relation	JSON
Set	.PriceCompany	equal to	Company
Auto-map	.PriceTable	To	PriceTable

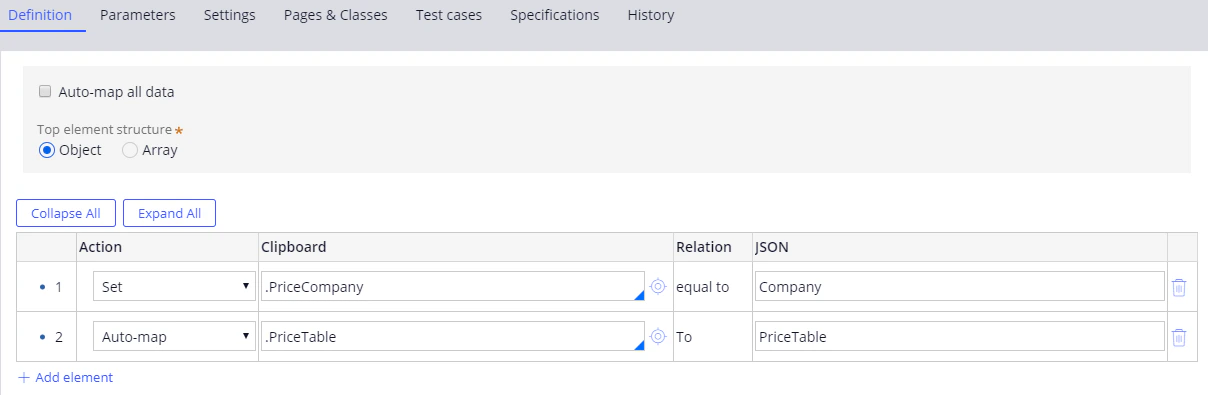

Screenshot of the jsonToPrice data transform Definition tab in Pega Dev Studio mapping the .PriceCompany clipboard property to the Company JSON property and auto-mapping .PriceTable.
