To configure an export profile:
  1. In the FC Project Setup Station click Project → Document Definitions… to open the list of Document Definitions available for the project. Select the Document Definition for which you want to specify new export settings, and click Edit….
  2. Click Document Definition → Export Settings….
  3. Click the Add… button to start the export profile creation wizard.

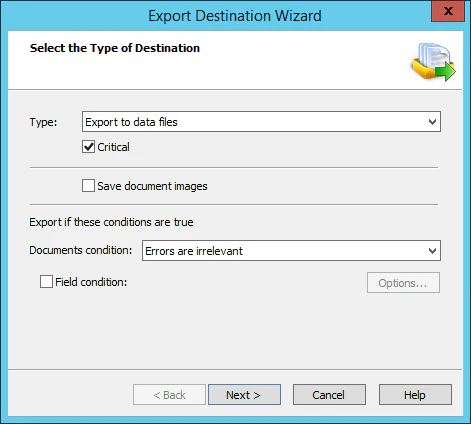

  4. In the Select the Type of Destination step, select Export to data files from the Type drop-down list, select the Critical option below, select the Errors are irrelevant item from the Document condition drop-down list, and click Next.

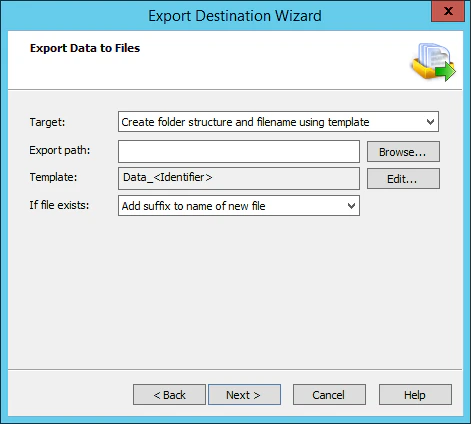

  1. In the Export Data to Files step, make sure the Export path field is empty and specify a file name template. Click Next.
  1. In the Data File Format step, select the required output format in the File type field, and click Next.
  2. Provide a name for your newly created export profile and click Finish.

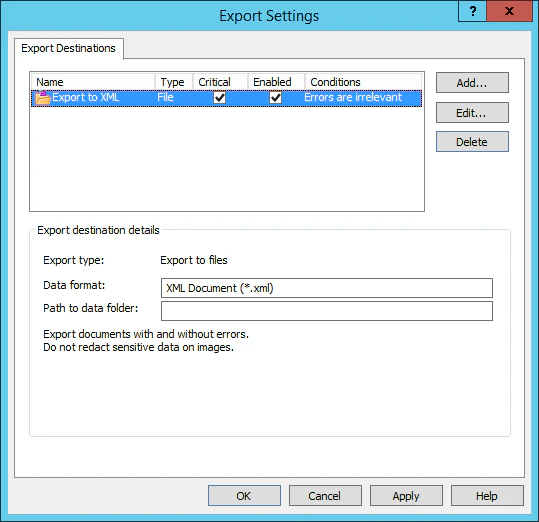

  3. In the Export Settings dialog box, check the Enabled box for the newly created export profile. Click Apply, then click OK.
  1. Save and close the Document Definition editor. Next, click the Publish button to publish your Document Definition.
