To configure the standard export profile:
  1. In the FC Project Setup Station click Project → Document Definitions… to open the list of Document Definitions available for the project. Select the Document Definition for which you want to specify new export settings, and click Edit….
  2. Click Document Definition → Export Settings….
  3. Click the Add… button to start the export profile creation wizard.

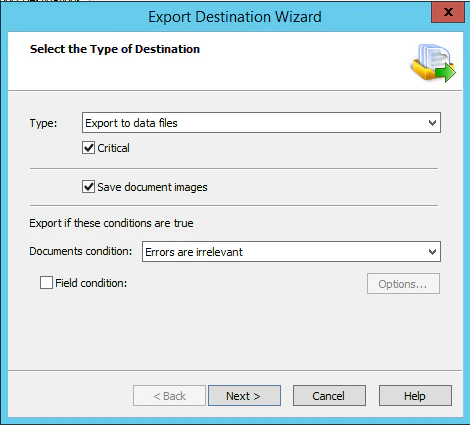

  4. In the Select the Type of Destination step, select Export to data files from the Type drop-down list, select the Critical option, check the Save document images option, then select the Errors are irrelevant item from the Document condition drop-down list and click Next.

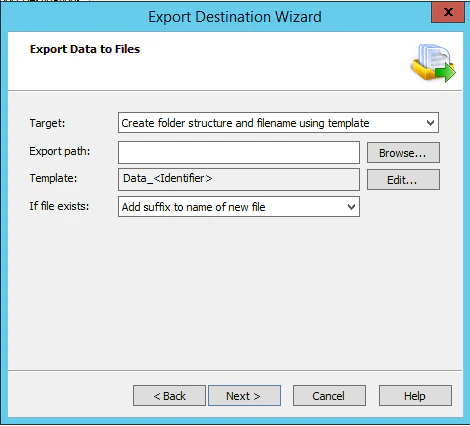

  1. In the Export Data to Files step, leave the Export path field empty and specify a file name template. Click Next.
  1. In the Data File Format step, select one of the supported output formats (XML, CSV, XLS, TXT, or DBF) in the File type field, and click Next.
  2. In the Export Images to Files step, select the Save images with data and click Next.
  3. In the Image File Format step, select the desired image file format options and click Next.
  4. Provide a name for your newly created export profile and click Finish.

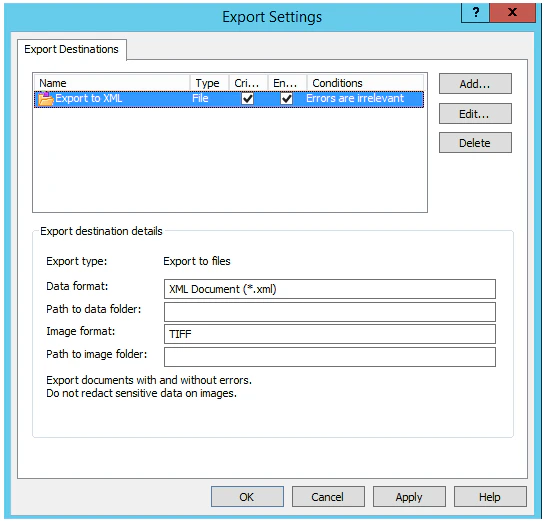

  5. In the Export Settings dialog box, check the Enabled box for the newly created export profile.
  1. Save and close the Document Definition editor. Next, click the Publish button to publish your Document Definition.
